Balusters, Balustrade Systems, Large Urns, Piers, and Rails...

Any questions?
call toll free
1-866-423-4956

E-mail
type 2 carved baluster

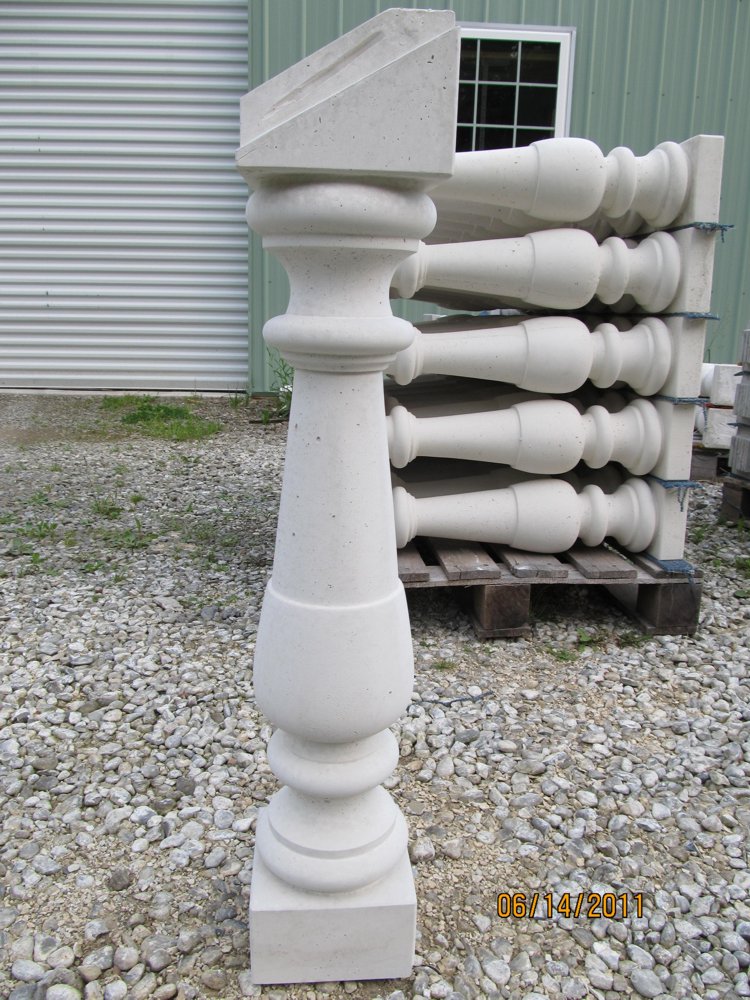

Type 1 plain baluster
Balusters type 1,2 and 3 are currently in stock and ready to be shipped immediately. this includes needed amount of top/bottom rail and newel posts.
If you fax or email us a layout of your patio with exact measurements, we can make you a turbo cad drawing of your balustrade to calculate how many balusters you will need, suggest best spacing for your balusters and give a better idea of how your balustrade will look. call for details.
Copyright ©2005, Vytas Ornamental Inc. All rights reserved.
Manufacturer of Balusters, Balustrade Systems, Cornice, Ceiling Medallions and Crown Moulding.
Vytas Ornamental Baluster Division.

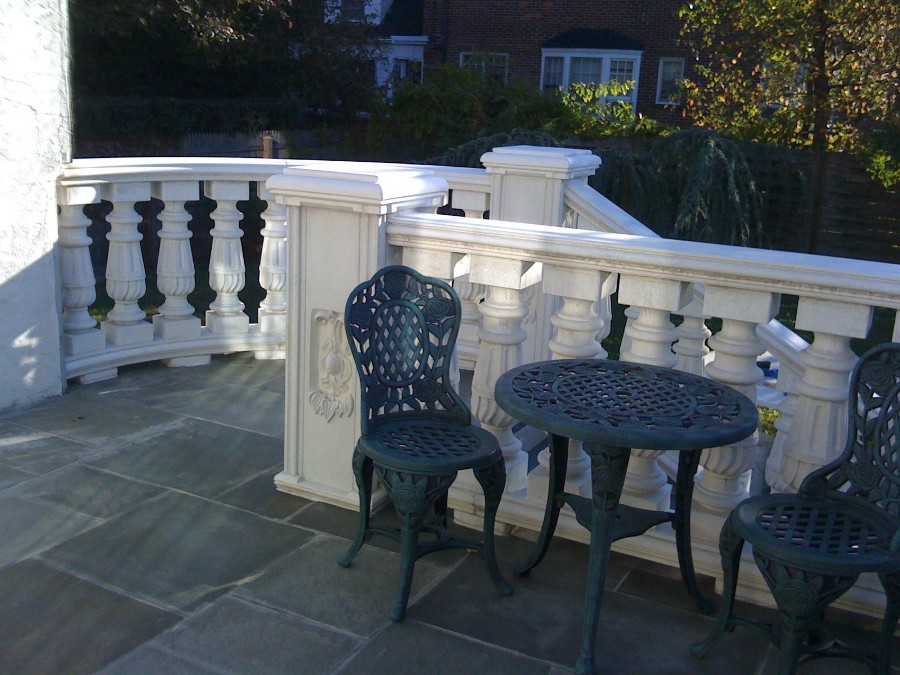

Balustrade at Mickey Jamals
For more information view these pages on our web site:
MASONS WANTED - If you work with concrete/stone please fill out this form so we can connect you with customers in your area
Home - Balusters - Cornice - Ceiling - Other - Contact Us

BALUSTER -type 5 (S-shape)

Width: 6"x6"
Total height of a balustrade = 38 1/2 " (with bottom railing and elevation pads)
Single baluster height = 29 1/2" (1 3/8" goes inside the railing)
Height of a railing = 3 5/8"   width of a railing = 9 3/4"
Total height without bottom railing = 31 6/8"

These balusters have different design on front and back, also on one leaf goes up, on the other down to create a more interesting look

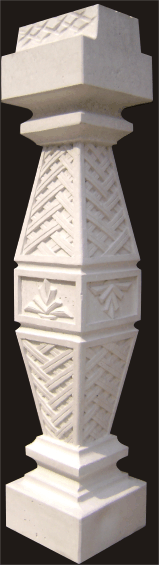

BALUSTER -type 4 (Square)

Width: 6"x6"
Total height of a balustrade = 38 1/2 " (with bottom railing and elevation pads)
Single baluster height = 29 1/2" (1 3/8" goes inside the railing)
Height of a railing = 3 5/8"   width of a railing = 9 3/4"
Total height without bottom railing = 31 6/8"
BALUSTER -type 7 (Slim round leaf)

Width: 4"x4"
Total height of a balustrade = 38 1/2 " (with bottom railing and elevation pads)
Single baluster height = 29 1/2" (1 3/8" goes inside the railing)

these require different top rail then type 1-5 balusters

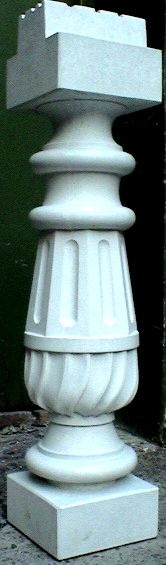

BALUSTER -type 3 (Fluted)

Width: 7"x7"
Total height of a balustrade = 39 1/2 " (with bottom railing and elevation pads)
Single baluster height = 30 1/2" (1 3/8" goes inside the railing)

These have architectural contemporary look

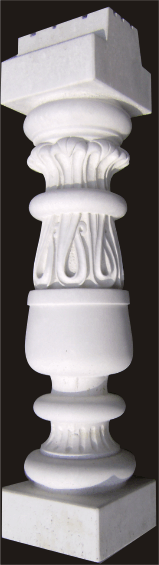

BALUSTER -type 2 (Carved)

Width: 7"x7"
Total height of a balustrade = 39 1/2 " (with bottom railing and elevation pads)
Single baluster height = 30 1/2" (1 3/8" goes inside the railing)

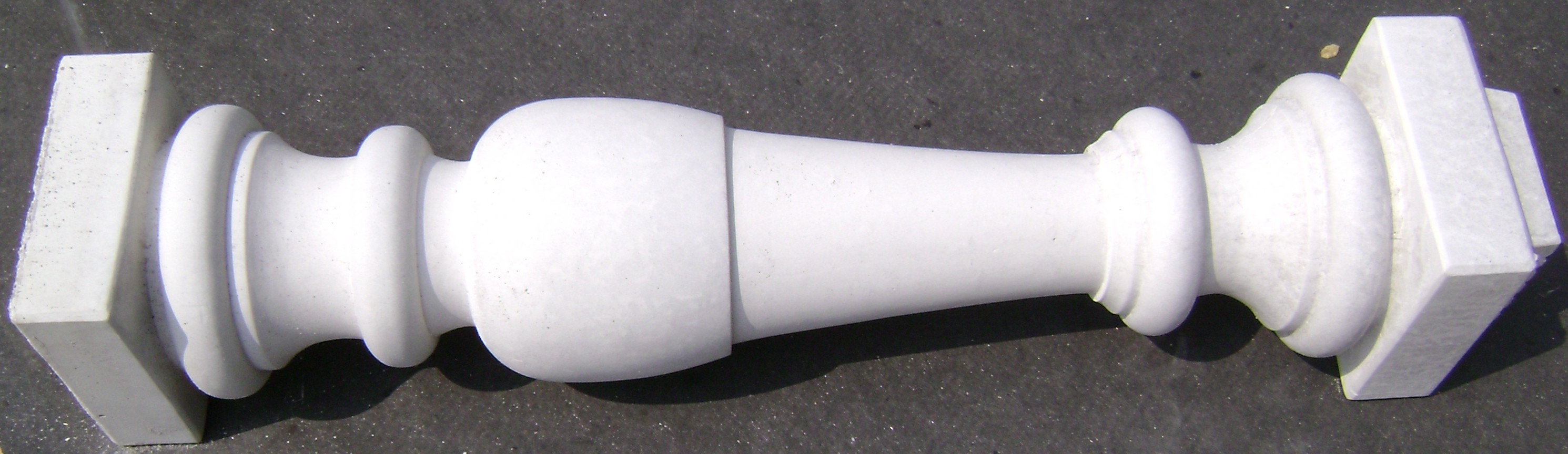

BALUSTER -type 1 (plain)

Width: 6"x6"
Total height of a balustrade = 38 1/2 " (with bottom railing and elevation pads)
Single baluster height = 29 1/2" (1 3/8" goes inside the railing)


Reinforcement: all our balusters are reinforced with a 5/8" steal rebar, all rails with 2 steal rebars running all the way thruout, however you can request some rails specially reinforced with wire mesh instead for easier cutting.

Locking system: our bauster system has been designed with a unique locking system to avoid the need of drilling holes, measuring etc. top and bottom rails have uniform grooves underneath which glove-match the top of balusters leaving 1/4" for mortar. these groves can also be used to insert extra rebars where railings join together (rails themselves are already well reinforced). Our newel posts easily assemble from 6 parts and two of the sides have grooves where top and bottom rails lock in

Quality: Our top grade ("A") castings are commercial grade concrete with unsurpassable strength and durability achieved using special equipment

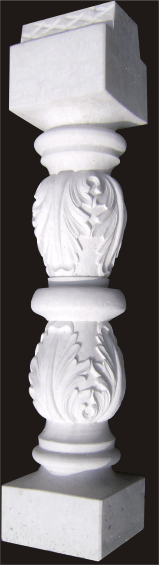

BALUSTER -type 8 (Royal carved)

Width: 6"x6"
Total height of a balustrade = 38.5" (with bottom railing and elevation pads)
Single baluster height = 29 1/2" (1 3/8" goes inside the railing)
